If you work in architecture, engineering, construction or manufacturing, chances are you regularly work with CAD files.
From detailed 2D drawings to complex 3D models, CAD files contain the information needed to communicate designs accurately. However, with different file formats, software platforms and project requirements, knowing which format to use and how to convert between them – can sometimes be confusing.
Whether you've received a DWG, need to send a drawing as a PDF, or have been given an old PDF that needs to be brought back into CAD, understanding how these file types work can make working with drawings much easier.
What is a CAD File?
CAD stands for Computer-Aided Design. A CAD file is a digital file created using CAD software to store technical drawings, designs or 3D models.
Depending on the file format and software being used, a CAD file can contain much more than the visible geometry of a drawing. It may also include:
- Lines, arcs and shapes
- Dimensions and annotations
- Layers
- Blocks
- Text
- 3D geometry
- Object properties
- Other drawing and project data
This information allows designers, engineers and other project stakeholders to create, edit and share accurate design information throughout a project.
Common CAD File Formats
There are many different CAD file formats, and the right one will depend on the software you are using and how the information needs to be shared. Some of the formats you are likely to encounter include:

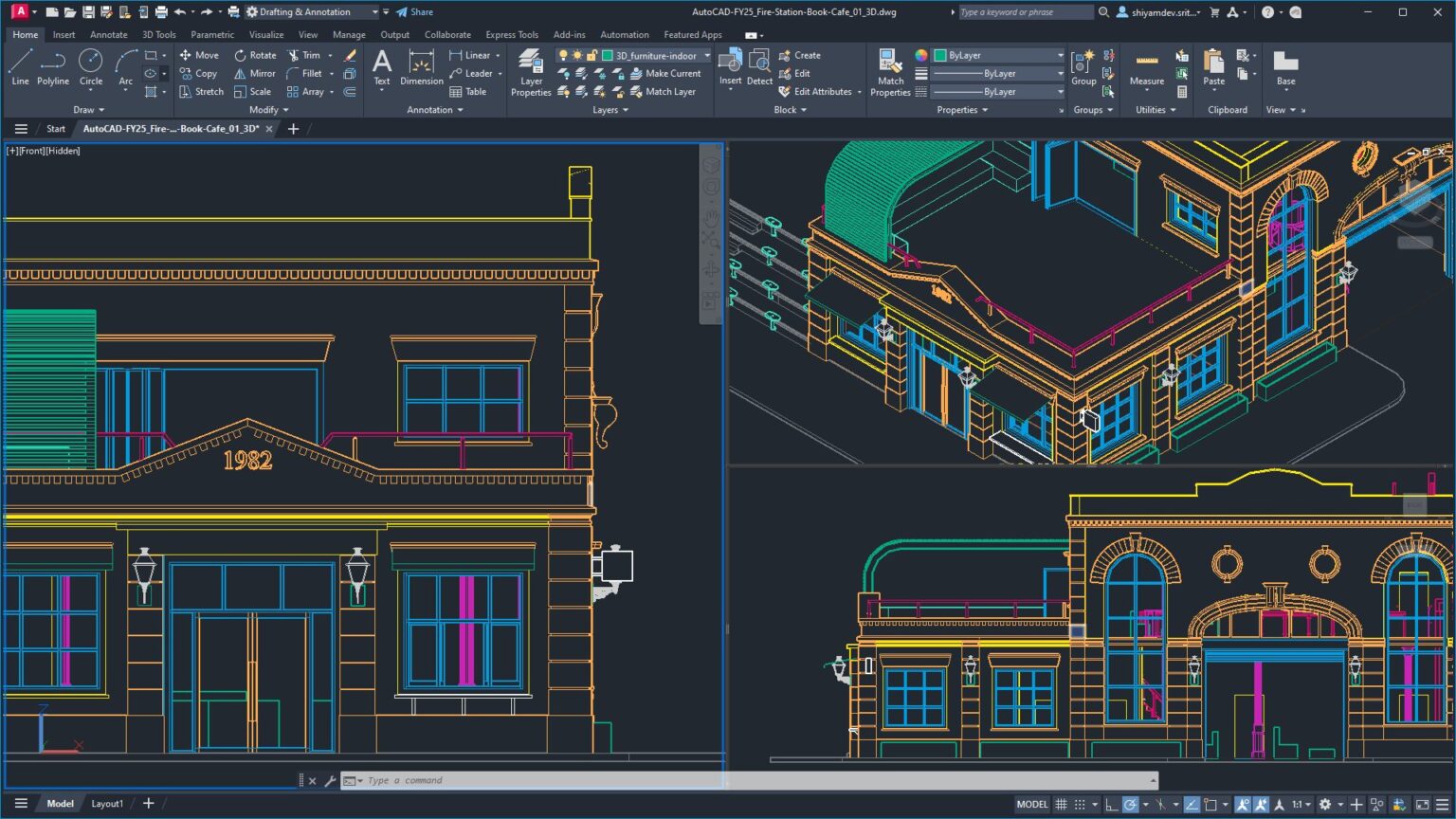

DWG
DWG is the native drawing file format used by AutoCAD and is one of the most widely used CAD formats. DWG files can store both 2D and 3D design information, including geometry, layers, annotations and other drawing data.
If you regularly work with AutoCAD, DWG will probably be one of the main file formats you use
DXF
DXF stands for Drawing Exchange Format. It was developed to make it easier to exchange drawing information between AutoCAD and other software applications.
DXF can therefore be useful when you need to send CAD information to someone using different software.
.
DWF
DWF files are designed primarily for sharing design information.
They can be useful when someone needs to review or communicate information from a design without necessarily working directly with the original CAD file.
PDF isn't a native CAD format, but it is commonly used to share drawings with clients, contractors and other stakeholders. Because PDFs can be opened without specialist CAD software, they provide a convenient way to distribute drawings for review, approval or reference.
How to Manage CAD Files Effectively
As projects become larger, good file management becomes increasingly important. A simple and consistent approach can make it much easier for everyone involved in a project to find the correct information. Consider using:
- Consistent file names: Establish a clear naming convention so users can quickly identify drawings, projects and revisions.
- Structured folders: Keep project information organised rather than relying on individual users to decide where files should be stored.
- Revision control: Make sure everyone understands which version of a drawing is current. This is particularly important when several people are working on the same project.
- Regular backups: Store important project data in a secure location and make sure appropriate backups are in place.
For larger collaborative projects, a Common Data Environment (CDE) can provide a more structured way to manage documents, revisions and project information.
How to Share CAD Files
Before sending a CAD file, think about what the recipient needs to do with it.
If they need to continue editing the drawing, you may need to provide the original DWG or another compatible CAD format.
If they only need to review the drawing, a PDF or online viewer may be more appropriate.
Choosing the right format can help avoid compatibility problems and ensures you aren't sharing editable project information unnecessarily.
How to View a CAD File Without AutoCAD
Not everyone who needs access to a drawing will have AutoCAD installed.
Autodesk Viewer provides a browser-based option for viewing a range of 2D and 3D design file formats. Users can upload supported files and inspect designs directly through their browser, making it useful when drawings need to be reviewed by clients or other project stakeholders who don't require full CAD software.
How to Convert a CAD File to PDF in AutoCAD
One of the most common CAD conversions is turning a DWG drawing into a PDF.
PDFs are easy to distribute and can be viewed on most devices without requiring CAD software. In AutoCAD, you can create a PDF using the PLOT command.
Step 1: Open Your Drawing: Open the DWG file you want to convert in AutoCAD.
Step 2: Start the PLOT Command: Type: PLOT into the command line and press Enter. Alternatively, you can access the Plot options through AutoCAD's interface.
Step 3: Choose a PDF Plotter: Under the printer or plotter options, select an appropriate AutoCAD PDF option.
Step 4: Choose Your Paper Size: Select the required paper size and confirm the area of your drawing that you want to plot.
Step 5: Check Your Plot Settings: Review settings such as:
- Plot scale
- Drawing orientation
- Plot area
- Plot style
- Lineweights
Step 6: Preview Your Drawing: Always preview the drawing before creating the final PDF. This gives you an opportunity to spot incorrect lineweights, missing information or layout problems.
Step 7: Create Your PDF: Once you're happy with the preview, select OK and choose where you want to save the PDF.
Can You Convert a PDF Back to CAD?
Yes, depending on how the PDF was originally created. AutoCAD includes the PDFIMPORT command, which can import certain information from a PDF into your drawing.
This can be particularly useful when you have been given a PDF drawing but no longer have access to the original DWG file.
How to Import a PDF into AutoCAD
Type: PDFIMPORT into the command line and press Enter. You can then select a PDF file and choose the page you want to import.
AutoCAD provides options that allow you to control how information from the PDF is brought into your drawing.
Depending on the PDF, AutoCAD may be able to convert vector geometry into editable objects such as:
- Lines
- Polylines
- Arcs
- Text
However, the results will depend heavily on the original PDF.
Vector PDF vs Raster PDF
Understanding the difference between vector and raster PDFs is particularly important when importing PDFs into AutoCAD.
A vector PDF contains geometry created from lines and curves. Because this information is stored mathematically, AutoCAD has a much better chance of converting it into usable CAD geometry.
A raster PDF, on the other hand, essentially contains an image.
For example, if an old paper drawing has been scanned and saved as a PDF, AutoCAD doesn't suddenly have access to the original lines, dimensions and layers. It sees the scanned image.
In this situation, you may need to use the image as a reference and manually recreate or trace the required geometry.
Check Your Drawing After PDF Import
Even when you're working with a good-quality vector PDF, don't assume the imported drawing is immediately ready to use. After importing, check:
- Drawing scale
- Units
- Text
- Linework
- Layers
- Dimensions
- Duplicate or overlapping objects
Some cleaning up may be required before you begin working with the converted drawing. Commands such as OVERKILL can also help identify and remove duplicate or overlapping geometry.
Can You Convert a Hand-Drawn Sketch to CAD?
You can also use sketches or scanned drawings as the starting point for a CAD drawing.
One approach is to scan or photograph the original drawing and attach the image to AutoCAD.
Using the IMAGEATTACH command, you can insert the image into your drawing and use it as a reference. You can then recreate the required geometry using familiar AutoCAD tools such as:
- LINE
- POLYLINE
- ARC
- SPLINE
Before tracing, make sure the reference image has been correctly scaled against a known measurement wherever possible.
Choosing the Right CAD File Format
There isn't one file format that's right for every situation.
The best option depends on what you need the recipient to do with the information.
- If they need to edit the drawing, a DWG or compatible CAD format may be appropriate.
- If you're exchanging information between different applications, DXF may provide greater compatibility.
- If someone only needs to view or review a drawing, a PDF or browser-based viewer may be sufficient.
Thinking about this before sharing files can help reduce compatibility problems and make collaboration easier.
Get More from AutoCAD
Understanding how to manage and convert CAD files can save time, improve collaboration and help you make better use of existing drawing information.
Whether you're converting DWG files to PDF, importing existing PDF drawings or working with information received from another organisation, AutoCAD provides a range of tools to help keep your workflow moving.
